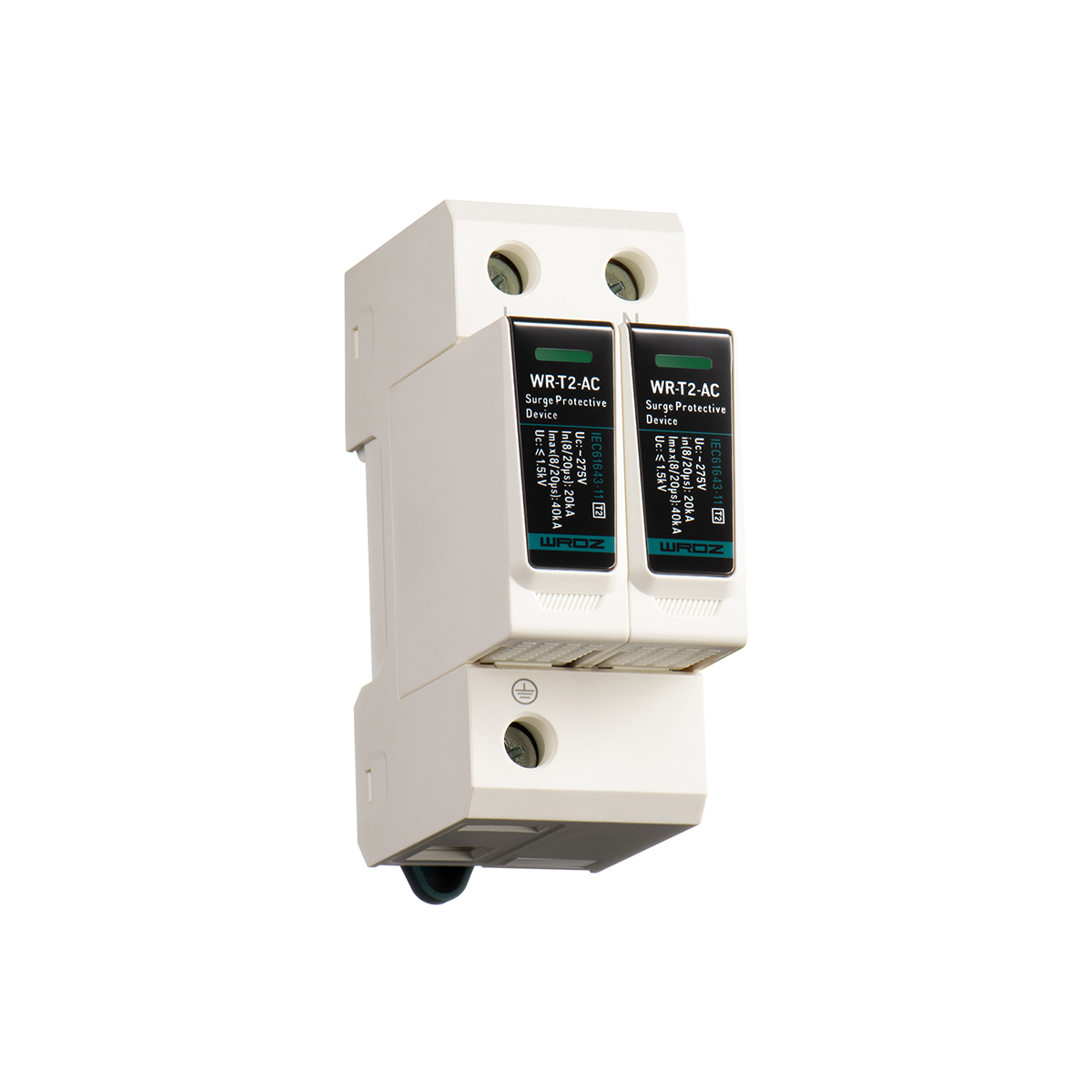

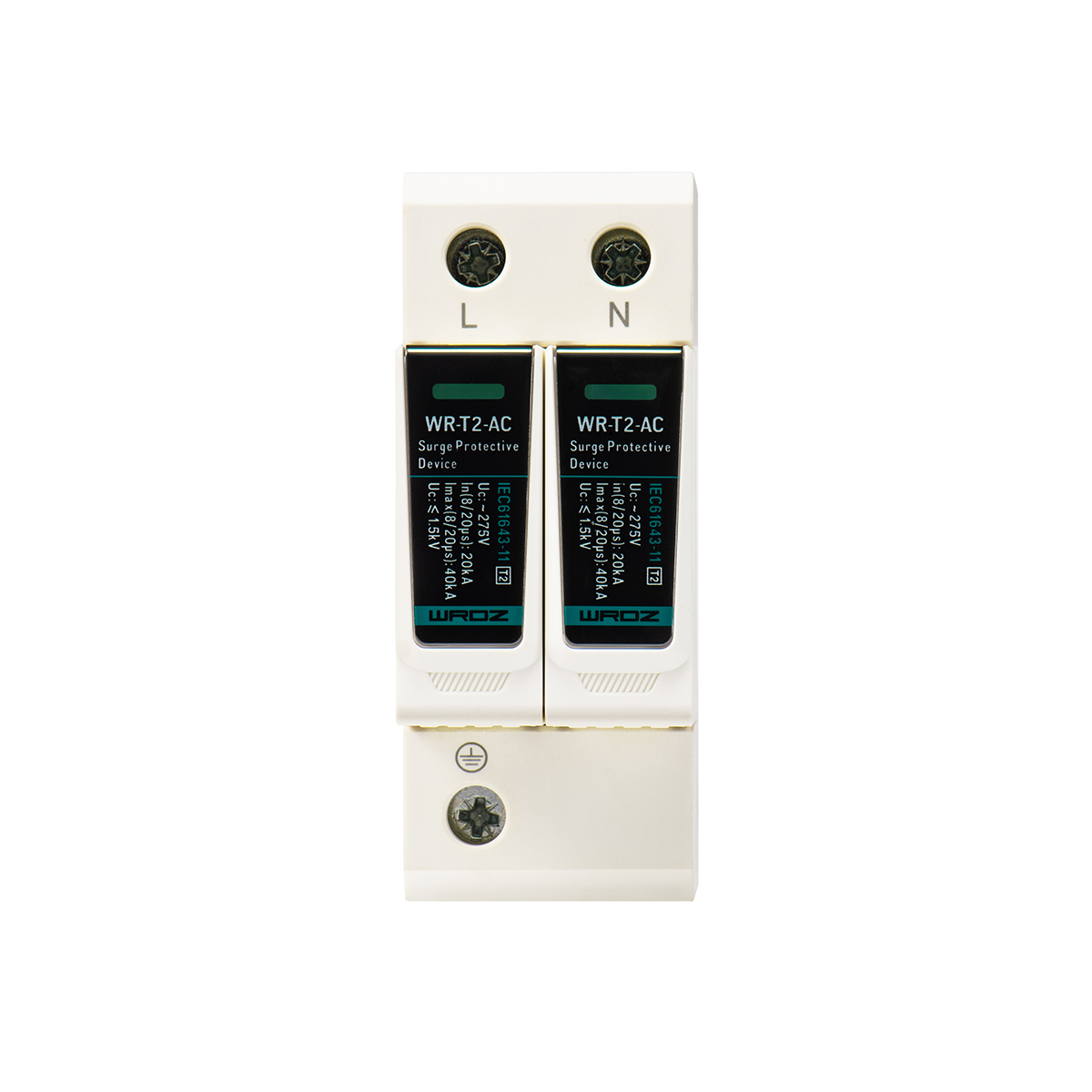

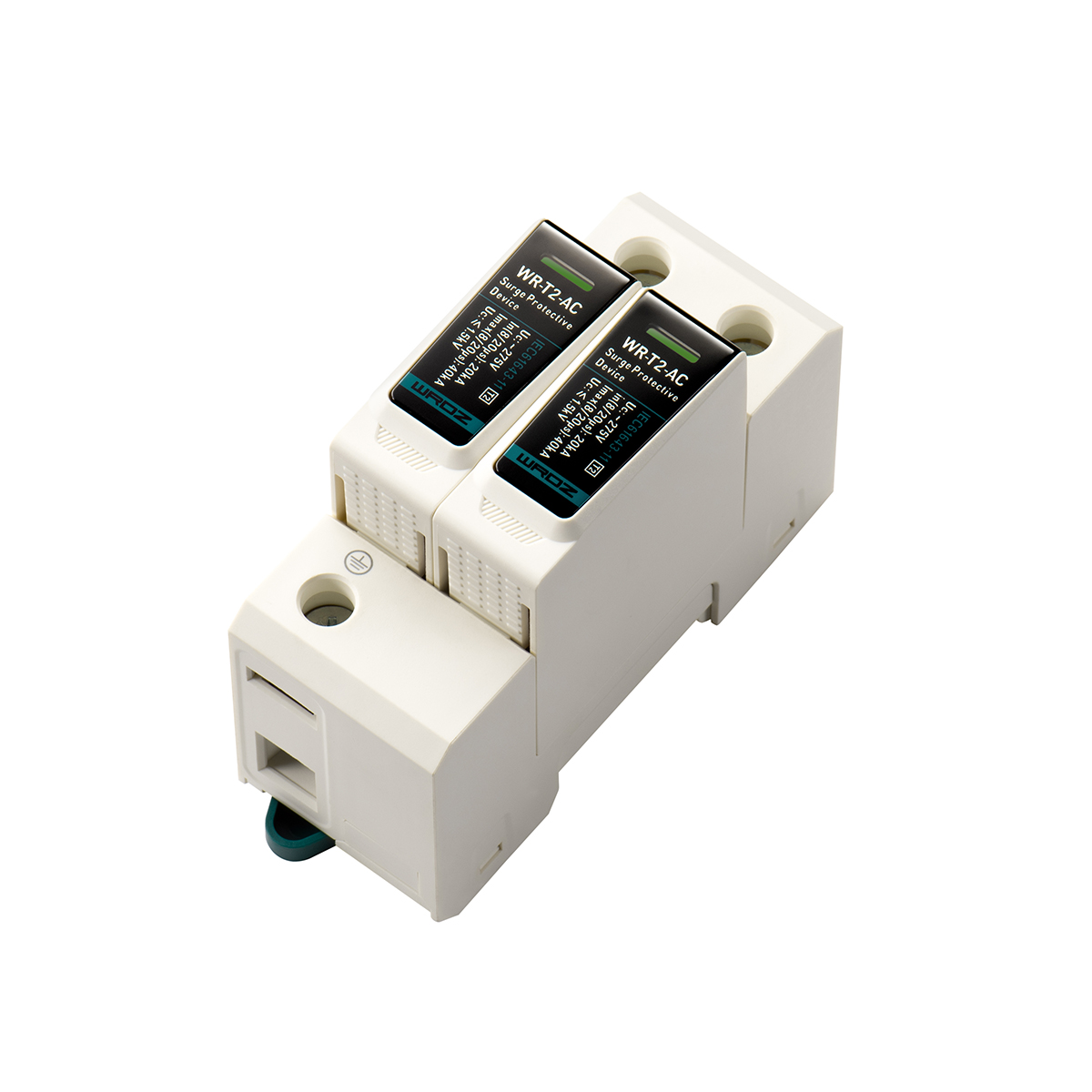

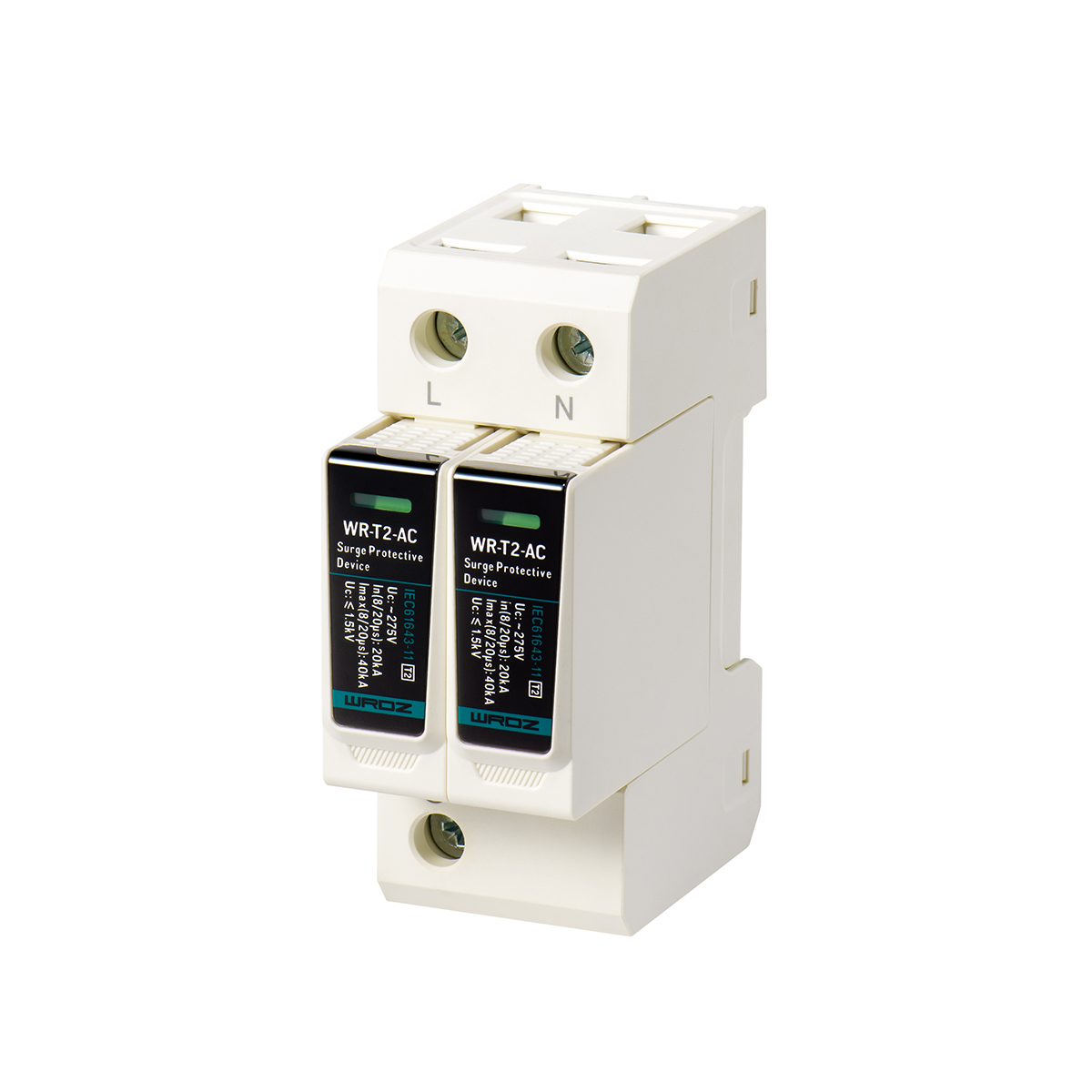

Type D T2 SPD 2P 2+0 Imax40kA Surge Protective Device

Product Parameter (Specification)

Technical Data
SPD Type		Type 2/Class II
Pole		1P/1+0
Technology		MOV (Metal Oxide Varistors)
Protection mode(s)		L-PE/N-PE
Nominal voltage (a.c.)	Un	220V	300V	380V	400V
Max. continuous operating voltage (a.c.)	Uc	275V	320V	385V	420V
Nominal discharge current(8/20μs)	ln	20kA
Max.discharge current (8/20μs)	lmax	40kA
Protection level	Up	≤1.5kV	≤1.6kV	≤1.8kV	≤2.0kV
Response time	tA	25ns
Temporary overvoltage (TOV) Withstand - 5 sec	Ut	355V	440V	440V	620V
Admissible short-circuit current	Isccr	25kA
Max. backup fuse		63A gL/gG
Mechanical Data
Type	AC System
SPD configuration	Single Phase
Plugable	Available
Mounting	35mm DIN rail
Material	Thermoplastic,UL94 V-0
Operating temperature	-40℃...+80℃
Protection rating	IP20
Operating state / fault indication	Green / Red
Remote Signaling	Optional
Wiring for remote signaling	Max. 1.5mm solid/flexible
Max.Voltage / Current for remote signaling	250V/0.1A; 125V/0.2A; 75V/0.5A
Standards compliance	IEC 61643-11 / EN 61643-11
Certificate	CE,TUV.RoHS,CB
Packing Data
Weight(1 piece)	150g
Package Quantity	32 PCS/CTN
CTN Size	39.630.617cm

MORE DETAIL ABOUT PRODUCT

THE REAL SCENE OF FACTORY

Application of AC Surge Protector

Datacenter
Radio communication
Security Systems
Industrial Installation
Wind Turbine Installation
Domestic Photovoltaic
Industry Photovoltaic Solar Farms
Energy storage systems

FQA

Q1：Are you a surge protector factory or a trading company？

A1: We are a factory specializing in production of surge protectors. And also a manufacturer integrating chip R&D and production

as well as the design、 production、sale of surge protectors.

Q2：Your company's warranty and service

A2:1. The product is guaranteed for 2 years

2. During the production process, the product will be detected for voltage and current even the products that meet the testing

will be shipped

3. When there is a quality problem with the product, our company will overtake all the costs of replacing the product.

4. Our company provides data sheets and related technical which support for products.

Q3：Do you provide samples?

A3：Our company can provide a quantity of 1-5 samples, and the fee of samples will be refunded in la subsequent orders.

Q4: Can I customize the product?

A4：Of course you can.

Q5：What is the lead time?

A5: After confirming the payment, the regular order like 100 pieces only takes 5-7 days, but the specific time depends on the

order quantity

All our surge protective devices are manufactured in strict accordance with IEC61643-1 and GB18802.1-2011 standards, fully managed under the ISO9001 quality management system. Our products have obtained authoritative certifications including TUV, CE and RoHS, and passed professional lightning protection equipment tests issued by BEKING and Shanghai Lightning Protection Institution.

Strict quality control measures are implemented in every production link, from raw material incoming inspection, assembly, finished product aging test to factory sampling inspection, so we control product quality from the source and provide reliable products & worry-free long-term after-sales service for global customers:

Full inspection before delivery: Every finished product undergoes multiple tests on performance, voltage resistance and discharge current; unqualified products will never be delivered.
Complete certifications: Full sets of certification reports and test documents can be provided along with goods, meeting requirements of engineering acceptance and customs clearance worldwide.
Quality warranty: Long-term warranty is offered under standard installation & normal operation. Replacement and maintenance technical support are available for non-artificial quality failures.
Technical after-sales support: Professional electrical engineers are online 7×12 hours for consultation, providing one-stop technical guidance including model selection, installation and troubleshooting.
Bulk order service: Exclusive after-sales channel for long-term distributors and engineering clients. Rapid response for batch quality issues, with consistent quality guarantee for OEM customized orders.

We specialize in the R&D and manufacturing of surge protective devices. All production processes fully comply with dual lightning protection standards: IEC61643-1 international standard and GB18802.1-2011 Chinese national standard. Our factory has fully implemented the ISO9001 quality management system to realize standardized control of the whole production flow.

All our SPD products are equipped with internationally recognized certifications including TUV, CE and RoHS. Besides, our items have passed professional lightning protection equipment tests issued by BEKING and Shanghai professional lightning protection testing institutions, so all performance parameters are verified by authoritative third parties.

Comprehensive quality control measures are applied in every production link, covering raw material procurement, module processing, assembly, aging test and finished product delivery inspection to eliminate potential quality defects layer by layer. Supported by standardized production and complete testing systems, our brand can stably supply lightning protection products with consistent quality, which fit multiple scenarios including domestic and overseas power distribution projects, bulk foreign trade orders and OEM customization. We are a reliable long-term partner for global electrical distributors and engineering contractors.
